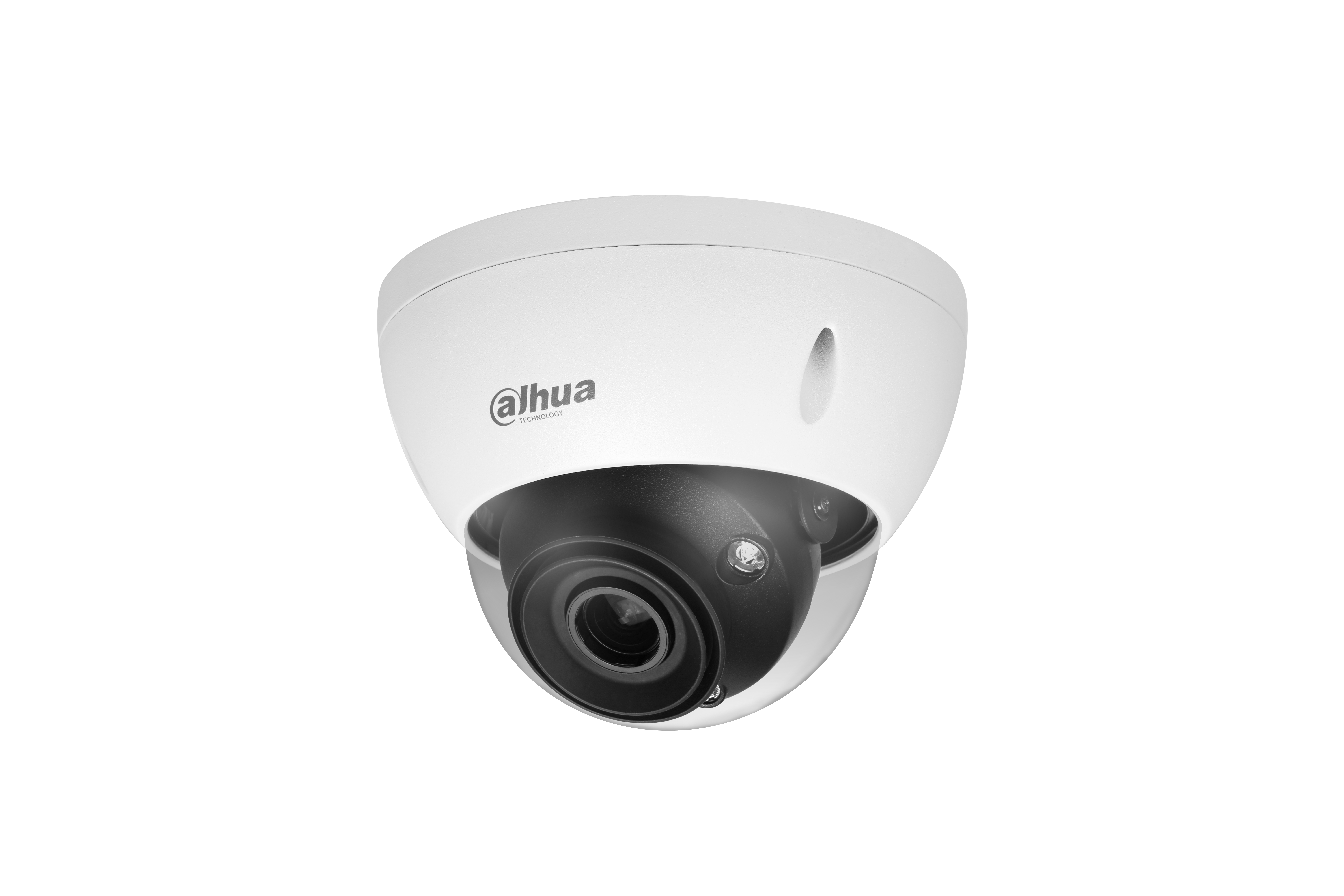

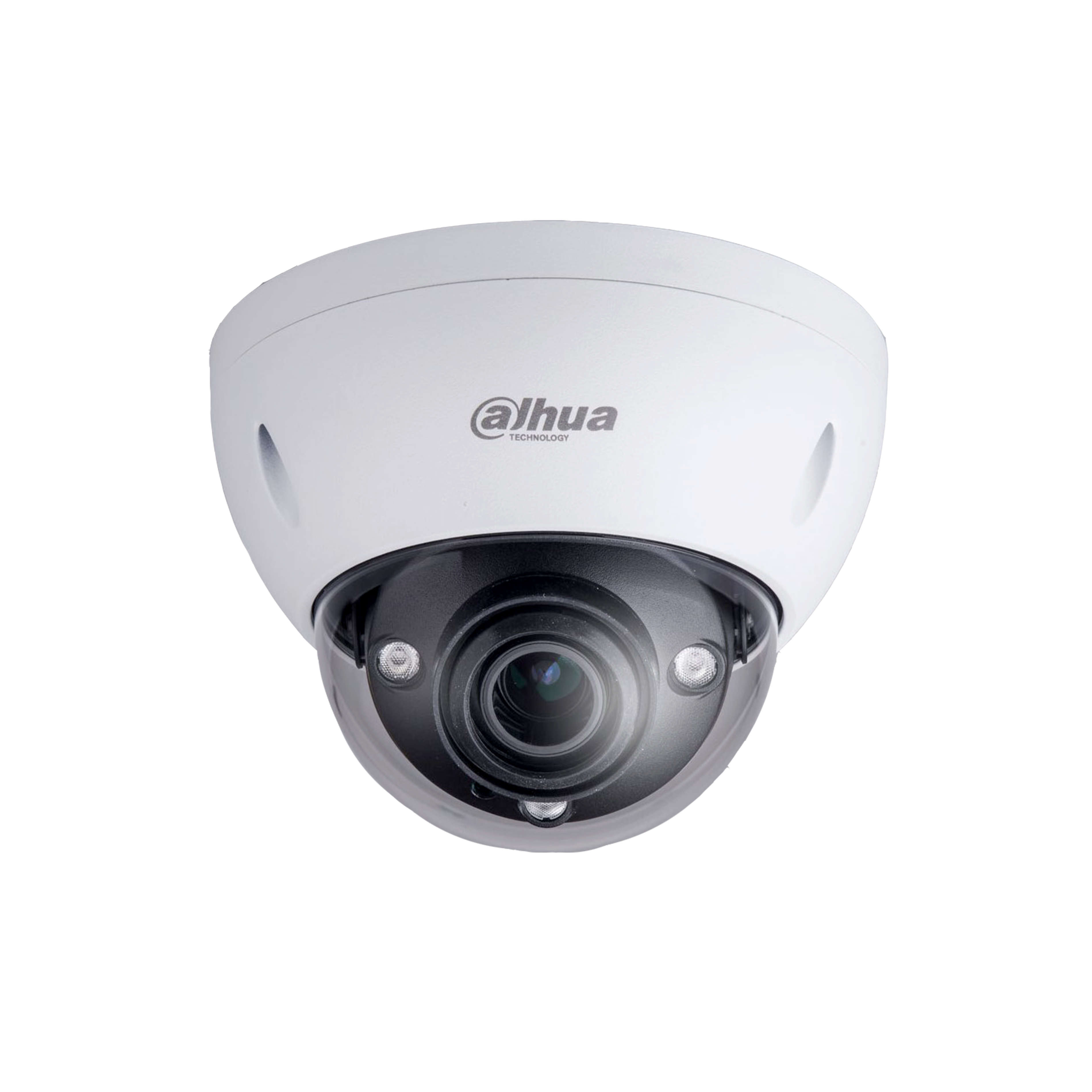

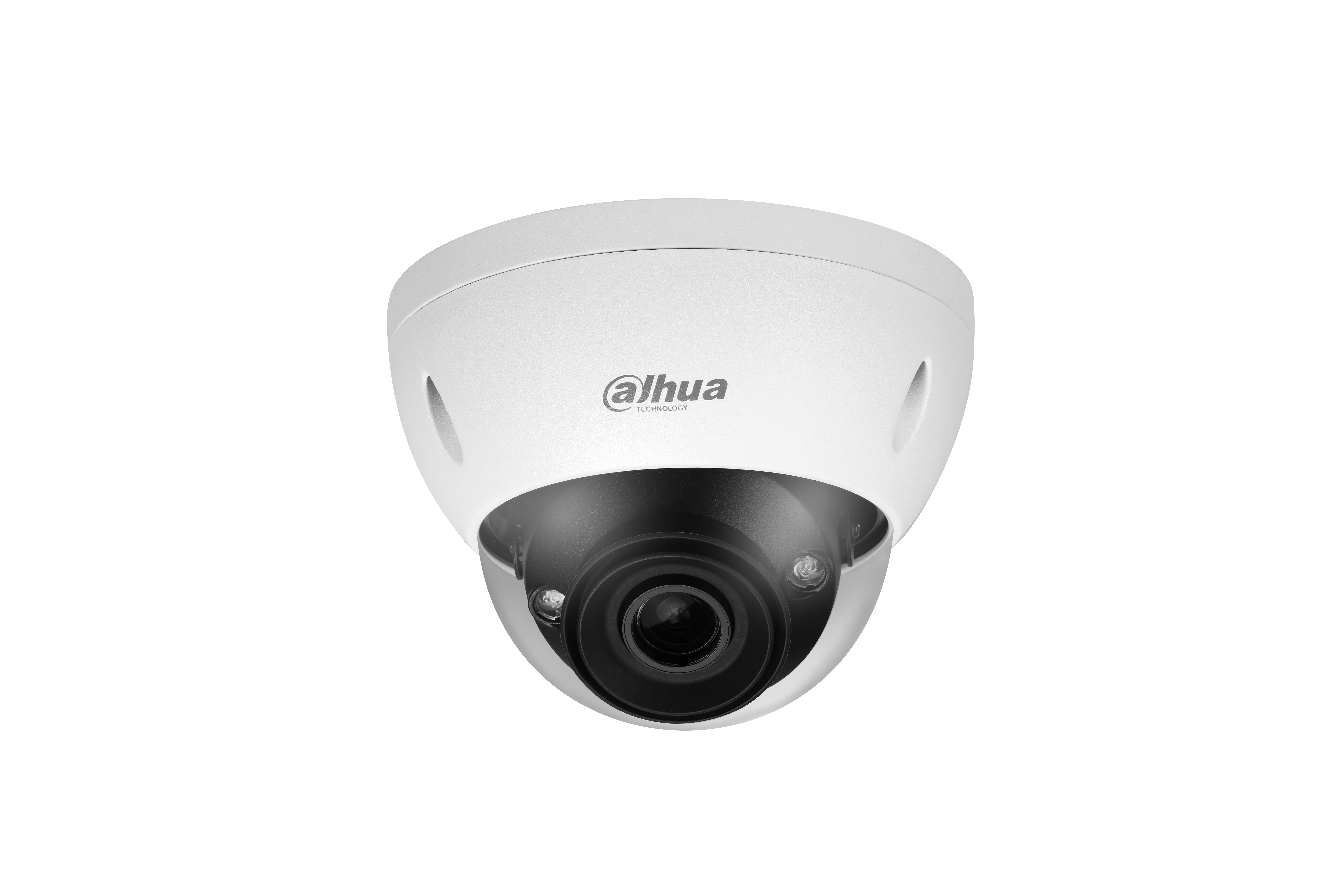

8MP WDR Vandal-proof IR Dome Camera Network CAMERA | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-IPC-HDBW5831EP-ZHE-2712

EAN: 6939554936173

Produktinformationen "8MP WDR Vandal-proof IR Dome Camera Network CAMERA"

1/2.5” 8Megapixel progressive scan STARVIS™ CMOS H.265&H.264 dual-stream encoding 15fps@4K(3840×2160),25/30fps@3M(2304×1296) Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.7mm ~12mm motorized lens Max. IR LEDs Length 50m Micro SD card memory, IP67,IK10, PoE+

Technische Daten

Video
Video Compression	H.265+;H.265;H.264+;H.264
Video Frame Rate	15fps@4K,30fps@3M
Resolution	4K (3840 × 2160); 6M (3072 × 2048); 5M (2560 × 1920); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
WDR	120 dB
Environment
Protection	IP67; IK10
Lens
Lens Type	Motorized vari-focal
Focal Length	2.7 mm–12 mm
Field of View	H: 105°–37°; V: 56°–21°; D: 125°–42°
DORI Distance	W: D: 81 m; O: 32.0 m; R: 16 m; I: 8 m (D: 265.75 ft; O: 104.99 ft; R: 52.49 ft; I: 26.25 ft) T: D: 296 m; O: 118 m; R: 59 m; I: 29 m (D: 971.13 ft; O: 387.14 ft; R: 193.57 ft; I: 95.14 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Camera
Appearance	Vandal-proof Dome
Image Sensor	1/2.5" CMOS
Pixel	8 MP
Max. Resolution	3840 (H) × 2160 (V)
Min. Illumination	0.05 lux@F1.4 (Color, 1/3s, 30 IRE); 0.2 lux@F1.4 (Color, 1/30s, 30 IRE)
Illumination Distance	Up to 50 m (164 ft) (IR LED)
Illuminator Number	3 (IR LED)
Power
Power Supply	12 VDC/24 VAC/PoE (802.3af)
