8MP WDR IR-Bullet Box Camera Network CAMERA | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-IPC-HFW4831EP-SE-0280B

EAN: 6939554935831

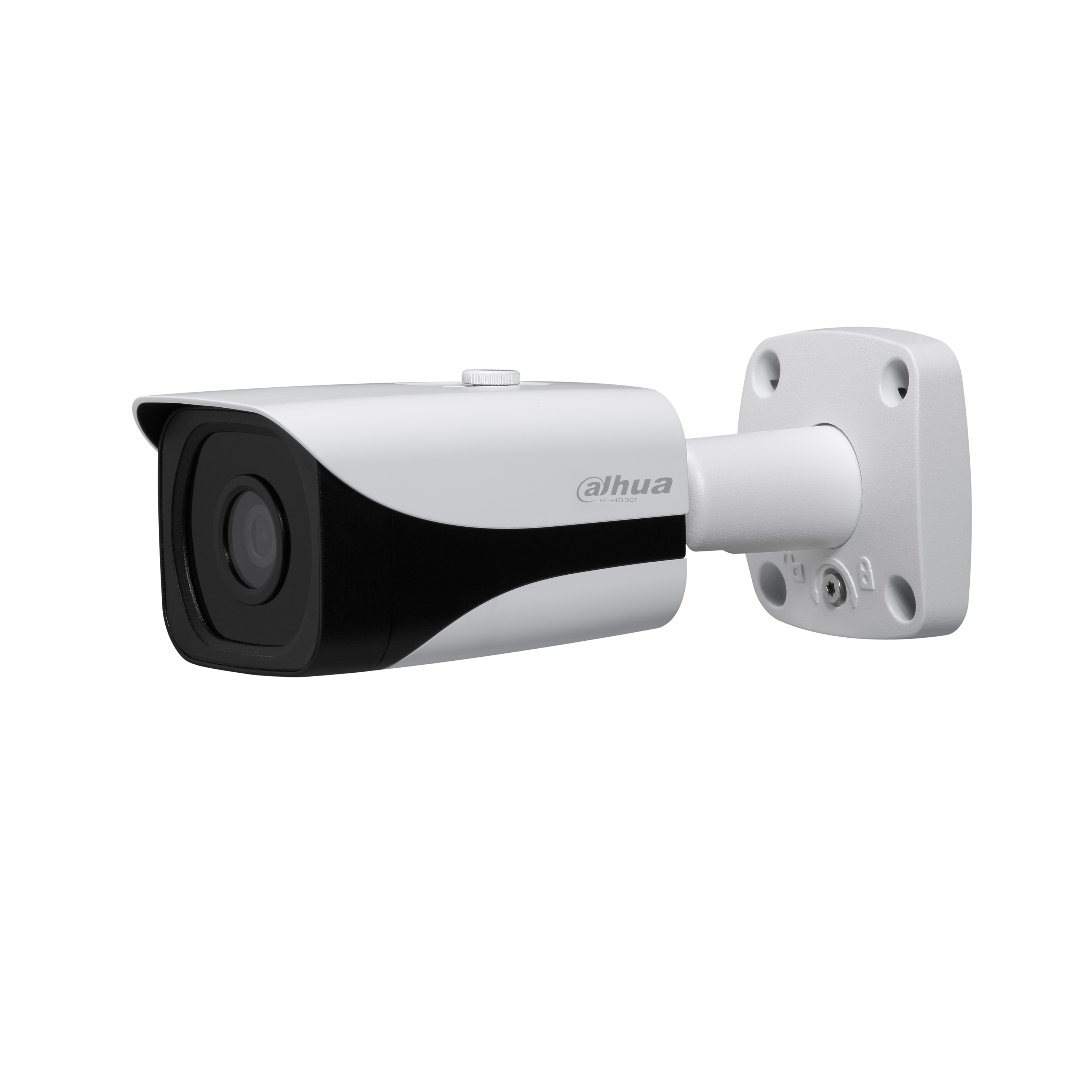

Produktinformationen "8MP WDR IR-Bullet Box Camera Network CAMERA"

1/2.5” 8Megapixel progressive scan STARVIS™ CMOS H. 265&H.264 triple-stream encoding 15fps@4K(3840×2160),25/30fps@3M(2304×1296) Smart Detection supported WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.8mm fixed lens (4mm optional) Max. IR LEDs Length 40m Micro SD Memory,IP67, PoE

Technische Daten

Function
Micro SD Card (Max.)	128 GB
Smart Event
IVS	Tripwire,Intrusion,Scene Change, Abandoned/Missing, Face Detection
Video
Video Compression	H.265+; H.265; H.264+; H.264
Video Frame Rate	15fps@4K,30fps@3M
Streaming Capability	3 streams
Resolution	(3840×2160)/(3072×2048)/(3072×1728)/(2592×1944)/(2688×1520)/(2560×1440)/(2304×1296)/1080P(1920×1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Day/Night	Auto(ICR)/Color/B/W
WDR	120 dB
Network
Interoperability	ONVIF (Profile S & Profile G); CGI
Storage	Micro SD card (support max.128 G)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Protection	IP67
Lens
Lens Type	Fixed-focal
Focal Length	2.8 mm
Field of View	H: 112°; V: 69°
DORI Distance	D: 69.1 m; O: 27.7 m; R: 13.8 m; I: 6.9 m (D: 226.71 ft; O: 90.88 ft; R: 45.28 ft; I: 22.64 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Camera
Appearance	Bullet
Image Sensor	1/2.5" CMOS
Pixel	8 MP
Max. Resolution	3840 (H) × 2160 (V)
Min. Illumination	0.06 lux@F1.6 (Color, 1/3s, 30 IRE); 0.3 lux@F1.6 (Color, 1/30s, 30 IRE)
Illumination Distance	Up to 40 m (131.23 ft) (IR LED)
Illuminator Number	2 (IR LED)
Angle Adjustment	Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Power
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	Max.6.5W
