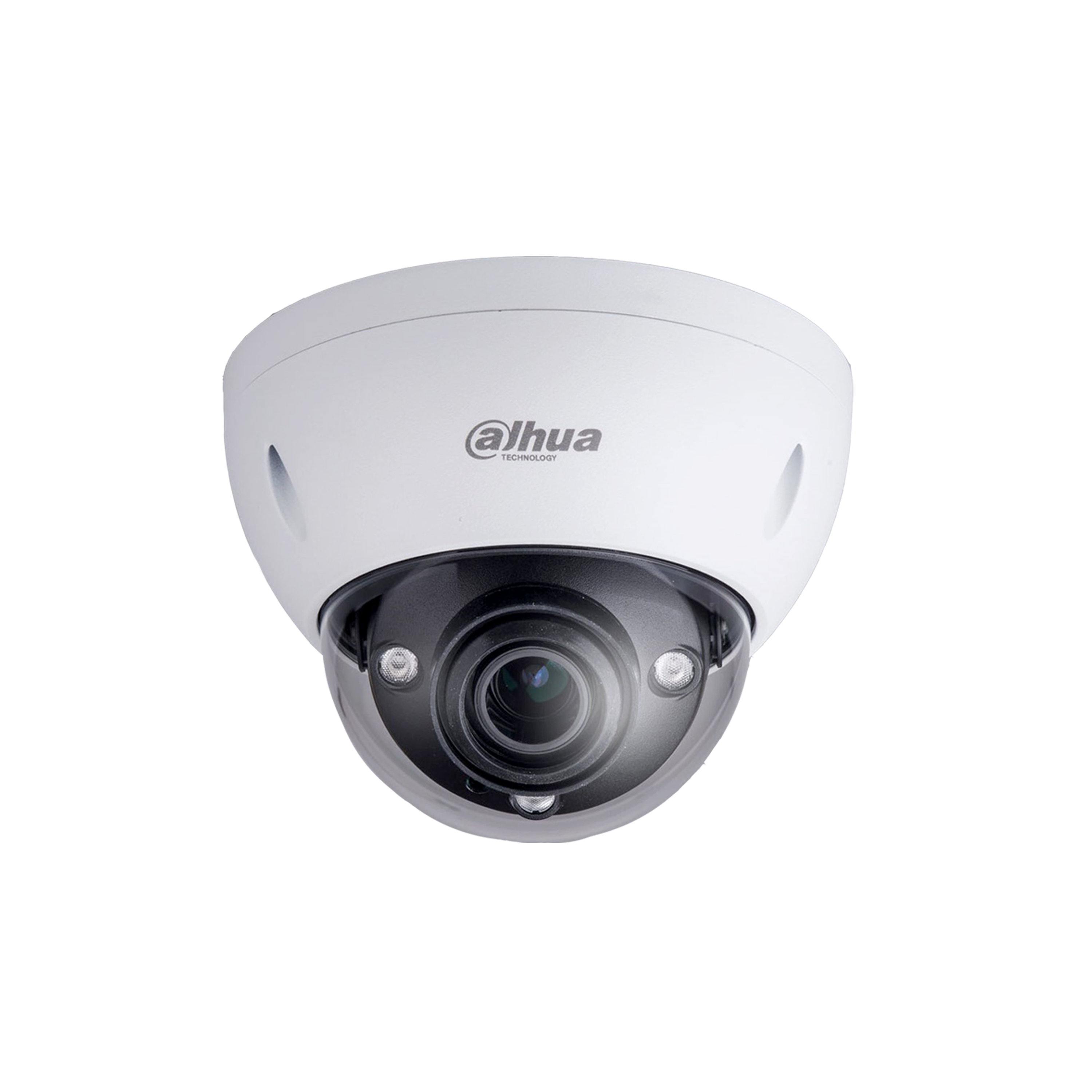

8MP WDR HDCVI IR IR Dome Camera | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-HAC-HDBW3802EP-ZH-3711

EAN: 6939554915048

Produktinformationen "8MP WDR HDCVI IR IR Dome Camera"

> 1/2” 8Megapixel progressive scan CMOS > 3x optical motorized zoom lens > Max. 15fps@3840×2160 > 120db true WDR,2D&3D NR > Intelligent functions > Max.50m IR distance,smart IR > IP67&IK10 ingress protection > Dual voltage input(DC 12v±25%/AC 24V±25%) > DC12V voltage output > Up to 500m transmission with RG59 coaxial cable

Technische Daten

Video
Video Frame Rate	4K@15 fps; 4M@30 fps
Resolution	4K (3840 × 2160); 4M (2560 × 1440)
Day/Night	Auto(ICR)/Color/B/W
WDR	120 dB
Noise Reduction	3D NR; 2D NR
Port
Video Output	HD/SD Dual-outputSD Tester-out
Audio Input	1
Alarm Input	2 channels
Alarm Output	1 channel
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Protection	IP67; IK10
Lens
Lens Type	Motorized vari-focal
Focal Length	3.7 mm–11 mm
Field of View	H: 112°–46°; V: 60°–26°
DORI Distance	3.7mm:D:83.3 m;O:33.3 m;R:16.6 m;I:8.3 m (D: 273.29 ft; O: 109.25 ft; R: 54.46 ft; I: 27.23 ft) 11mm:D:190.2 m;O:76.1 m;R:38.0 m;I:19.0 m (D:624.02 ft; O: 249.67 ft; R: 124.67 ft; I: 62.34 ft)
Camera
Pixel	8 MP
Appearance	Vandal-proof Dome
Image Sensor	1/2" CMOS
Max. Resolution	3840 (H) × 2160 (V)
Min. Illumination	0.005Lux/F1.5 (Color)0Lux/F1.5 (IR On)
Illumination Distance	50m(164ft),SmartIR
Illuminator Number	3 (IR light)
Angle Adjustment	Pan:0°~355°;Tilt:0°~85°Rotation:0°~355°
OSD Menu	Multi-language
Structure
Product Dimensions	Φ159.1 mm × 117.9 mm (Φ6.26" × 4.64")
Net Weight	0.90 kg (1.98 lb)
Installation	Wall Mount; Ceiling; Vertical pole mount
Power
Power Supply	12 VDC ± 25%; 24 VAC ± 25%
Power Consumption	AC24V±25%/DC12V±25%Max.12.4WOutput:DC12V,Max.4W
