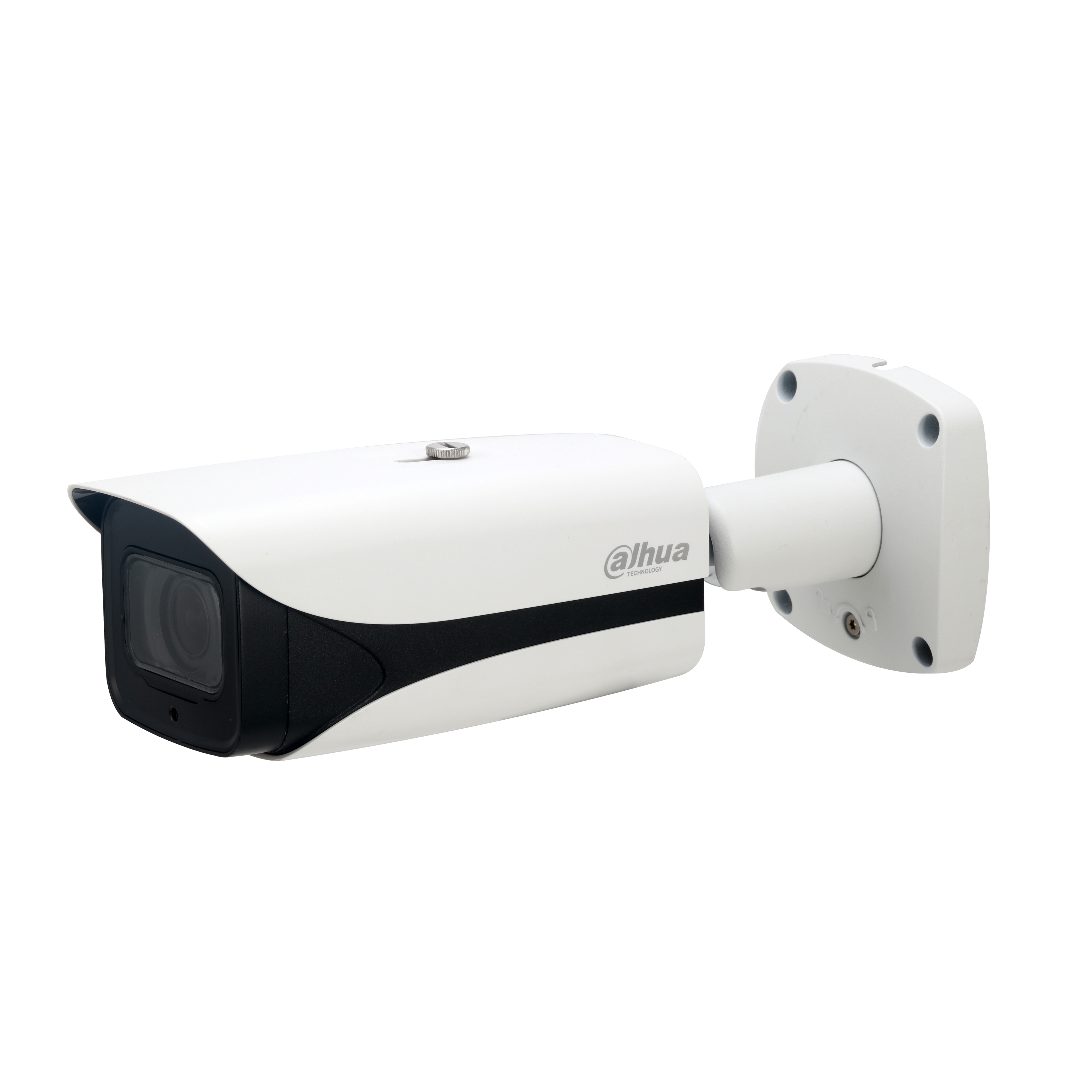

8MP WDR HDCVI IR IR-Bullet Box Camera | EPS Dahua
Details und Preise sehen Sie nach Login als Fachhandelspartner.
Lieferzeit bitte anfragen.
Art.-Nr.:
DH-HAC-HFW3802EP-ZH-VP-3711
EAN:
6939554931604
Produktinformationen "8MP WDR HDCVI IR IR-Bullet Box Camera"
> 1/2” 8Megapixel progressive scan CMOS
> 3x optical motorized zoom lens
> Max. 15fps@3840×2160
> 120db true WDR,2D&3D NR
> Intelligent functions
> Max.100m IR distance,smart IR
> IP67&IK10 ingress protection
> Dual voltage input(DC 12v±25%/AC 24V±25%)
> DC12V voltage output
> Up to 500m transmission with RG59 coaxial cable
Technische Daten
| Video | |
|---|---|
| Video Frame Rate | 4K@15 fps; 4M@30 fps |
| Resolution | 4K (3840 × 2160);4M (2560 × 1440) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Protection | IP67;IK10 |
| Lens | |
| Lens Type | Motorized vari-focal |
| Focal Length | 3.7 mm–11 mm |
| Field of View | H: 112°–46°; V: 60°–26° |
| DORI Distance | 3.7mm:D:83.3 m;O:33.3 m;R:16.6 m;I:8.3 m (D: 273.29 ft; O: 109.25 ft; R: 54.46 ft; I: 27.23 ft) 11mm:D:190.2 m;O:76.1 m;R:38.0 m;I:19.0 m (D:624.02 ft; O: 249.67 ft; R: 124.67 ft; I: 62.34 ft) |
| Camera | |
| Pixel | 8 MP |
| Appearance | Bullet |
| Image Sensor | 1/2" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Illuminator Number | 4 (IR light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Structure | |
| Installation | Wall Mount;Ceiling;Vertical pole mount |
| Power | |
| Power Supply | 12 VDC ± 25%;24 VAC ± 25% |
