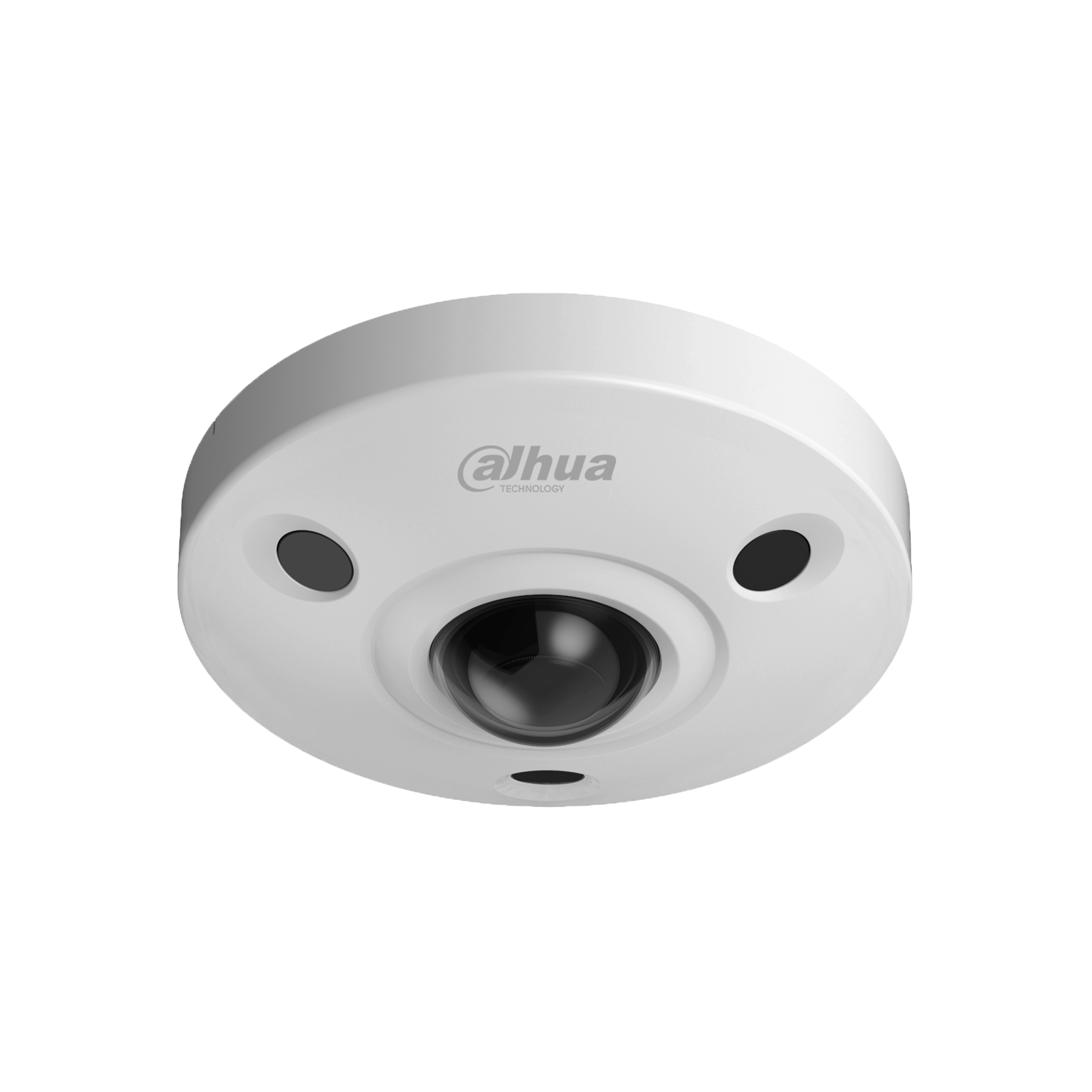

8MP General HDCVI Non Compensation Light Fisheye Camera | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-HAC-EBW3802P-0250B

EAN: 6939554920905

Produktinformationen "8MP General HDCVI Non Compensation Light Fisheye Camera"

> 1/2” 8Megapixel progressive scan CMOS > Panoramic fisheye lens > Max. 15fps@4K > 120db true WDR,2D&3D NR > On-device lens distortion correction > Max.15m IR distance > IP67&IK10 ingress protection > Up to 500m transmission with RG59 coaxial cable

Technische Daten

Video
Video Frame Rate	4K@15 fps; 4M@30 fps
Resolution	4K (3840 × 2160); 4M (2560 × 1440)
Day/Night	Auto(ICR)/Color/B/W
WDR	120 dB
Noise Reduction	3D NR; 2D NR
Port
Video Output	HD/SD Dual-output
Audio Input	1ch in & Built-in Mic
Alarm Input	2 channels
Alarm Output	1 channel
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Protection	IP67; IK10
Lens
Lens Type	Fixed-focal
Focal Length	2.5 mm
Field of View	H:180°V:95.6°
DORI Distance	D:53 m O:21.2 m R:10.6 m I:5.3 m (D: 173.88 ft; O: 69.55 ft; R: 34.78 ft; I: 17.39 ft)
Camera
Pixel	8 MP
Appearance	Fisheye
Image Sensor	1/2" CMOS
Max. Resolution	3840 (H) × 2160 (V)
Min. Illumination	0.005Lux/F2.0 (Color)0Lux/F2.0 (IR On)
Illumination Distance	15m(49ft),SmartIR
Illuminator Number	1 (IR light)
OSD Menu	Multi-language
Structure
Product Dimensions	149.8 mm × 149.8 mm × 47.7 mm (5.90" × 5.90" × 1.88") (L × W × H)
Net Weight	0.56 kg (1.23 lb)
Installation	Wall Mount; Ceiling; Vertical pole mount
Power
Power Supply	12 VDC ± 25%
Power Consumption	Max.7.4W
