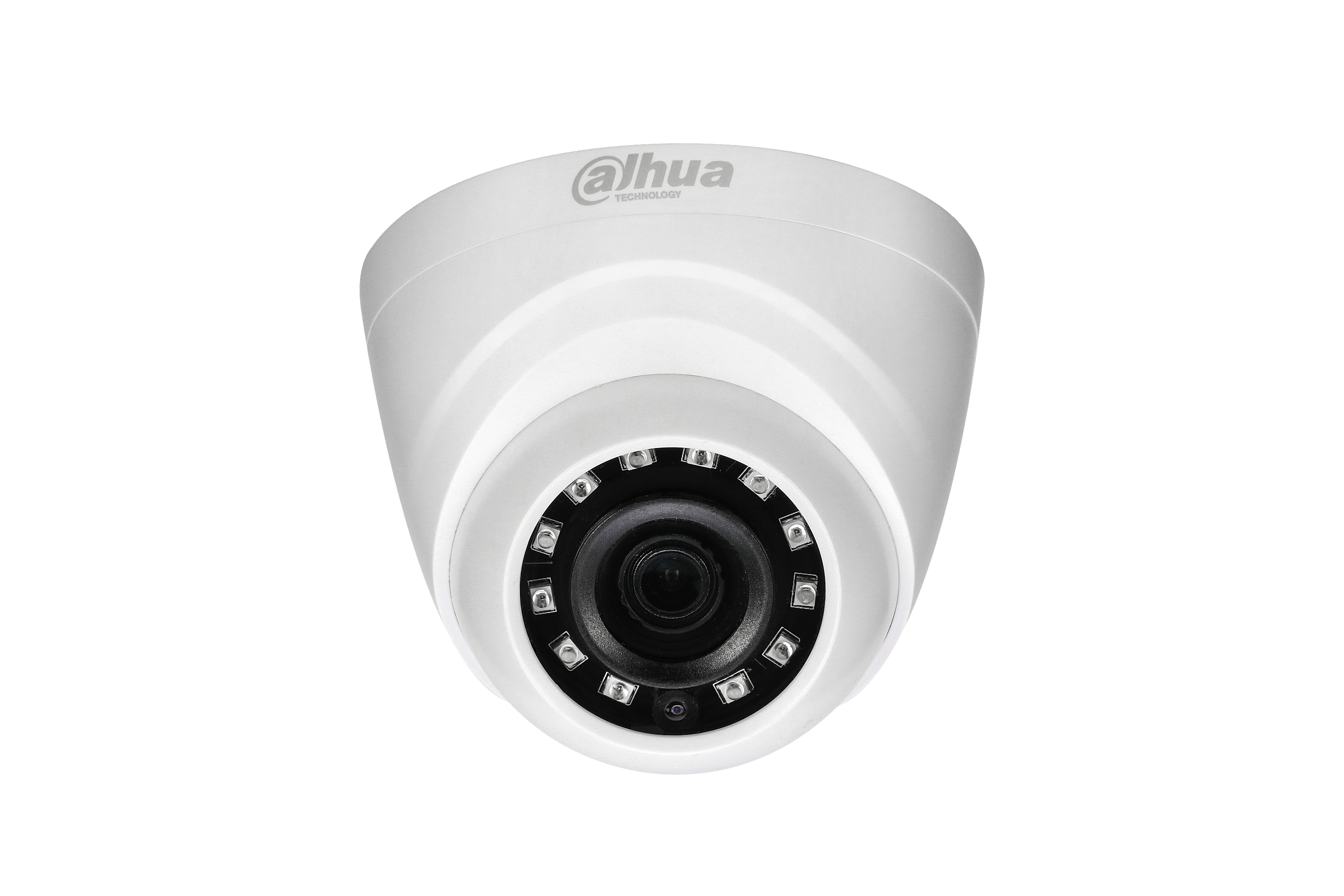

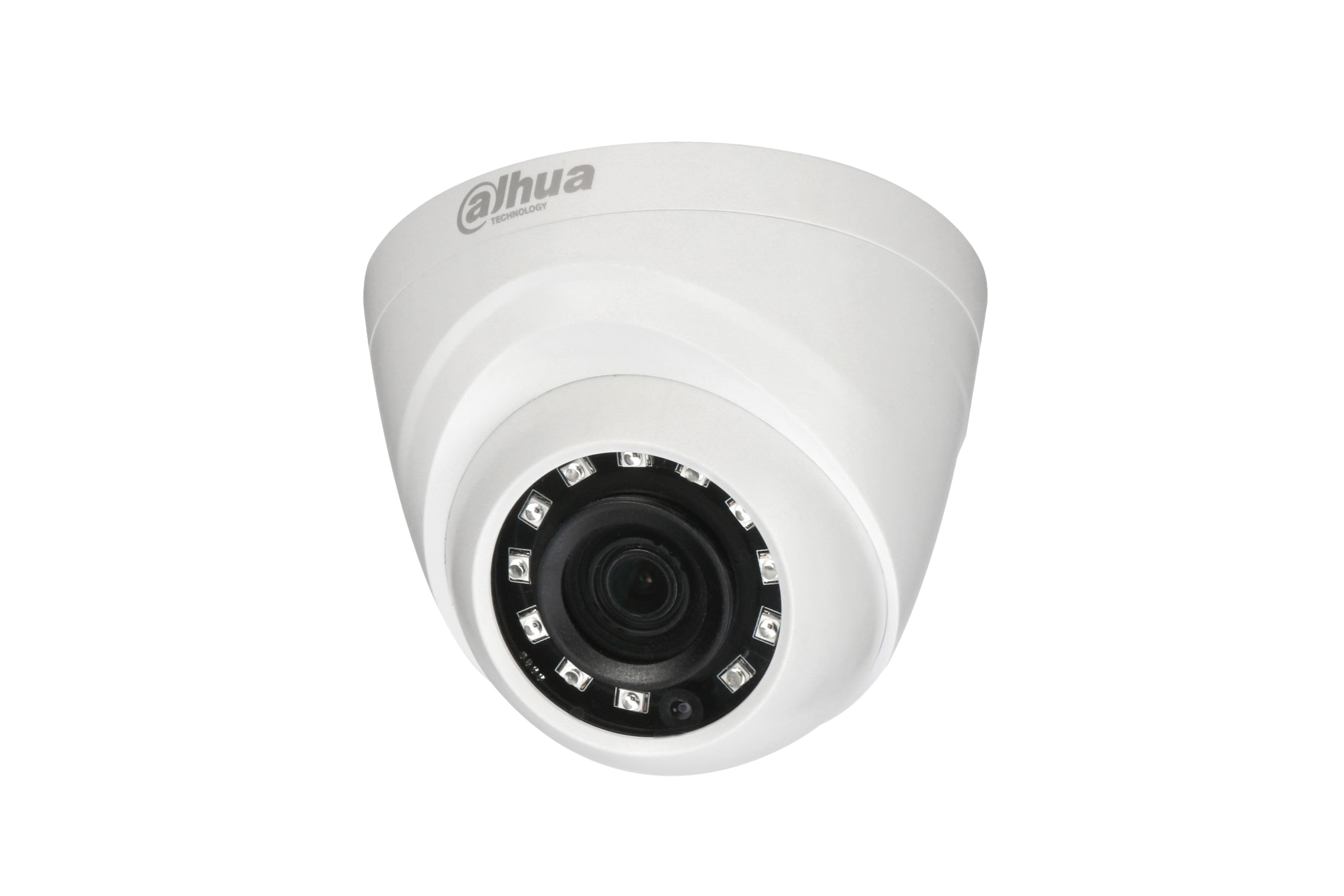

8MP General HDCVI CAMERA IR Eyeball Camera | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-HAC-HDW1800RP-0280B

EAN: 6939554975950

Produktinformationen "8MP General HDCVI CAMERA IR Eyeball Camera"

Max. 4K resolution CVI/CVBS/AHD/TVI switchable Fixed lens (2.8mm; 3.6mmoptional) Max. IR length 20m, Smart IR IP50, 12V±30%DC

Technische Daten

Video
Video Frame Rate	CVI: PAL: 4K@15 fps; 5M@20 fps; 4M@25 fps NTSC: 4K@15 fps; 5M@20 fps; 4M@30 fps AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps CVBS: PAL: 960H; NTSC: 960H
Resolution	960H (960 × 576/960 × 480); 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440)
Day/Night	Auto(ICR)/Color/B/W
WDR	DWDR
White Balance	Auto; Manual
Gain Control	Manual; Auto
Noise Reduction	2D NR
Smart Illumination	Yes
Mirror	Off/On
Privacy Masking	Off/On (8 areas, rectangle)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Environment
Operating Temperature	–40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity	<95% (RH), non-condensing
Storage Temperature	–40 °C to +55 °C (–40 °F to +131 °F)
Protection	IP50
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm
Max. Aperture	F2.0
Field of View	H:105°;V:56°;D:125°
Iris Control	Fixed
Close Focus Distance	1.0 m (3.3 ft)
DORI Distance	D: 74.7 m (245.1 ft); O: 29.9 m (98.1 ft); R: 14.9 m (48.9ft); I: 7.5 m (24.6 ft)
Camera
Pixel	8 MP
Appearance	Eyeball
Image Sensor	1/2.7" CMOS
Max. Resolution	3840 (H) × 2160 (V)
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s
Min. Illumination	0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio	>65 dB
Illumination Distance	20 m (65.6 ft)
Illuminator On/Off Control	Auto; Manual
Illuminator Number	12 (IR light)
Angle Adjustment	Pan:0°–360° Tilt:0°–78° Rotation:0°–360°
Structure
Casing Material	Plastic
Product Dimensions	Φ85.4 mm × 70.2 mm (Φ3.36" × 2.76")
Net Weight	0.12 kg (0.26 lb)
Gross Weight	0.19 kg (0.42 lb)
Installation	Wall Mount; Ceiling; Vertical pole mount
Certification
Certifications	CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Power
Power Supply	12 VDC ± 30%
Power Consumption	Max 3.56W (12V DC, IR on)
