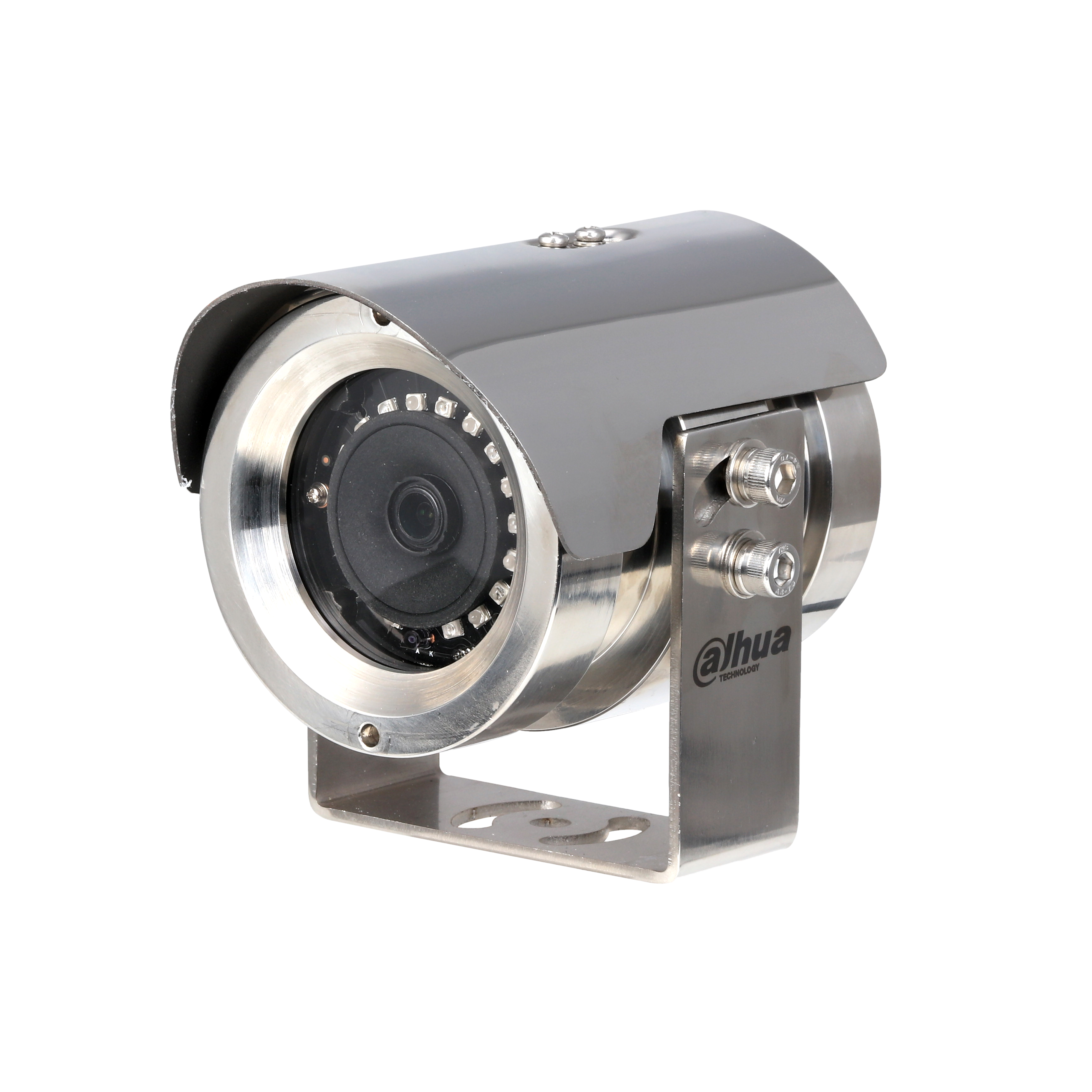

2MP IR ANTI-CORROSION CAMERA | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-SDZW2000T-SL-0360

EAN: 6939554942631

Produktinformationen "2MP IR ANTI-CORROSION CAMERA"

> 1/2.8' 2Megapixel STARVIS™ CMOS > Starlight technology > H.265 Encoding > Max. 50/60fps@1080P > IVS > IP68, IK10, NEMA 4X > Material: 316L Stainless Steel

Technische Daten

Smart Event
IVS	Tripwire, IntrusionAbandoned/MissingFace Detection
Video
Video Compression	H.265; H.264
Streaming Capability	3 streams
Resolution	1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 ×720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240)
Video Frame Rate	Main stream: 1080p/1.3M/720p@(1–50/60 fps) Sub stream 1: D1/CIF@(1–25/30 fps) Sub stream 2: 1080p/720p/D1@(1–25/30 fps)
WDR	120dB
Network
Interoperability	ONVIF (Profile S & Profile G); API
Environment
Operating Temperature	-40°C ~ +60°C(-40°F ~ +140°F)
Protection	IK10; IP68
Lens
Focal Length	3.6mm;6mm
Field of View	H: 87.4°; V: 47°
DORI Distance	W: D: 49.7 m; O: 19.9 m; R: 9.9 m; I: 5.0 m (D: 162.91 ft; O: 65.16 ft; R: 32.58 ft; I: 16.29 ft) T: D: 82.8 m; O: 33.1 m; R: 16.6 m; I: 8.3 m (D: 271.51 ft; O: 108.61 ft; R: 54.30 ft; I: 27.15 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Camera
Image Sensor	1/2.8" CMOS
Pixel	2 MP
Max. Resolution	1920 (H) × 1080 (V)
Min. Illumination	0.005Lux/F2.1(Color) 0.0005Lux/F2.1(B/W)0Lux/F2.1 (IR on)
Illumination Distance	30 m (98 ft)
Illuminator Number	9 (IR light)
Certification
Certifications	NEMA 4X：4788592756
Power
Power Supply	12 VDC, 1 A, PoE(802.3af) Max. 5 W
