2MP General Others Network CAMERA | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-IPC-MW1230DP-HM12-0600B

EAN: 6939554963285

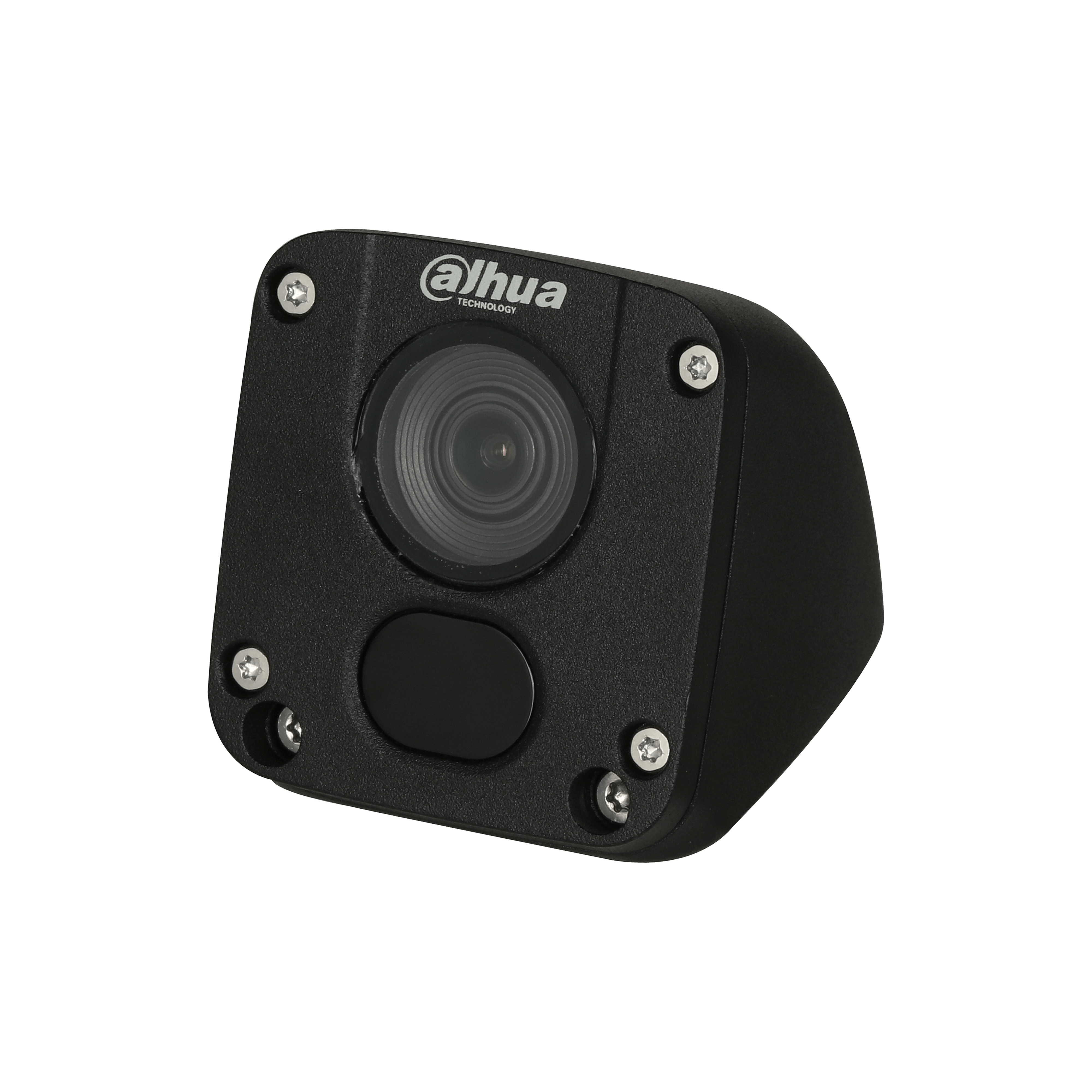

Produktinformationen "2MP General Others Network CAMERA"

> 1/2.7” 2Megapixel progressive scan CMOS > H.265&H.264 triple-stream encoding > 25/30fps@1080(1920×1080) > DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC, > Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS > 2.8mm fixed lens (3.6mm, 6mm optional) > Max. IR LEDs Length 30m(6mm lens) > IP67, IP6K9K > EN50155(Optional), E-MARK(ECE-Regulation No.10) > IP Filter,User Authentication > Supports motion detection, temper alarm and IPC disconnection alarm. > Supports watermark. > E-MARK(ECE-Regulation No.10)

Technische Daten

Video
Video Compression	H.265+/H.265/H.264+/H.264
Video Frame Rate	Main Stream: 1080P(1-25/30fps); Sub Stream:D1(1-25/30fps);
Streaming Capability	2 streams
Resolution	1080P(1920×1080)/1.3M(1280x960)/720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32-6144Kbps; H.265: 12-6144Kbps;
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Off/On (4 Zone)
Smart Illumination	Yes
Image Rotation	0°/90°/180°/270°
Mirror	Off/On
Privacy Masking	Off/On (4 Area, Rectangle)
Network
Network Port	M12 A-Coding(10/100Base-T)
Network Protocol	HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability	ONVIF profile S, CGI
User/Host	Unicast:10 Users Multicast:20 Users
Storage	NAS Local PC for instant recording
Browser	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, Easy4ip
Mobile Client	iOS; Android
Environment
Operating Temperature	-30° C - +60° C (-22° F - +140° F) / Less than 95% RH
Storage Temperature	-30° C - +60° C (-22° F - +140° F) / Less than 95% RH
Protection	IP67,IP6K9K
Lens
Lens Type	Fixed-focal
Lens Mount	M 12
Focal Length	6 mm
Max. Aperture	F 2.0
Field of View	Horizontal:53°; Vertical: 30°;
Iris Control	Fixed
DORI Distance	Detect: 80m(262ft); Observe: 32m(104ft); Recognize: 16m(52ft); Identify: 8m(26ft);
Camera
Image Sensor	1/2.7" CMOS
Pixel	2 MP
Max. Resolution	1920 × 1080
ROM	16 MB
RAM	128 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s-1/100,000 s
Min. Illumination	0.02Lux/F2.1( Color,1/3s,30IRE)； 0.2Lux/2.1( Color,1/30s,30IRE)； 0Lux/F2.1(IR on)；
S/N Ratio	More than 50dB
Illumination Distance	Distance up to 30m (98ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	1
Structure
Casing Material	Metal
Product Dimensions	80.2 mm × 65.8 mm × 59.2 mm (3.16" × 2.59" × 2.33") (L × W × H)
Net Weight	0.28 kg (0.62 lb)
Gross Weight	0.35 kg (0.77 lb)
Certification
Certifications	CE (EN 60950:2000); FCC: FCC Part 15 Subpart B; E-mark(ECE-Regulation No.10); EN50155(Optional);
Power
Operating Voltage	DC 12V
Power Consumption	< 3.7W
