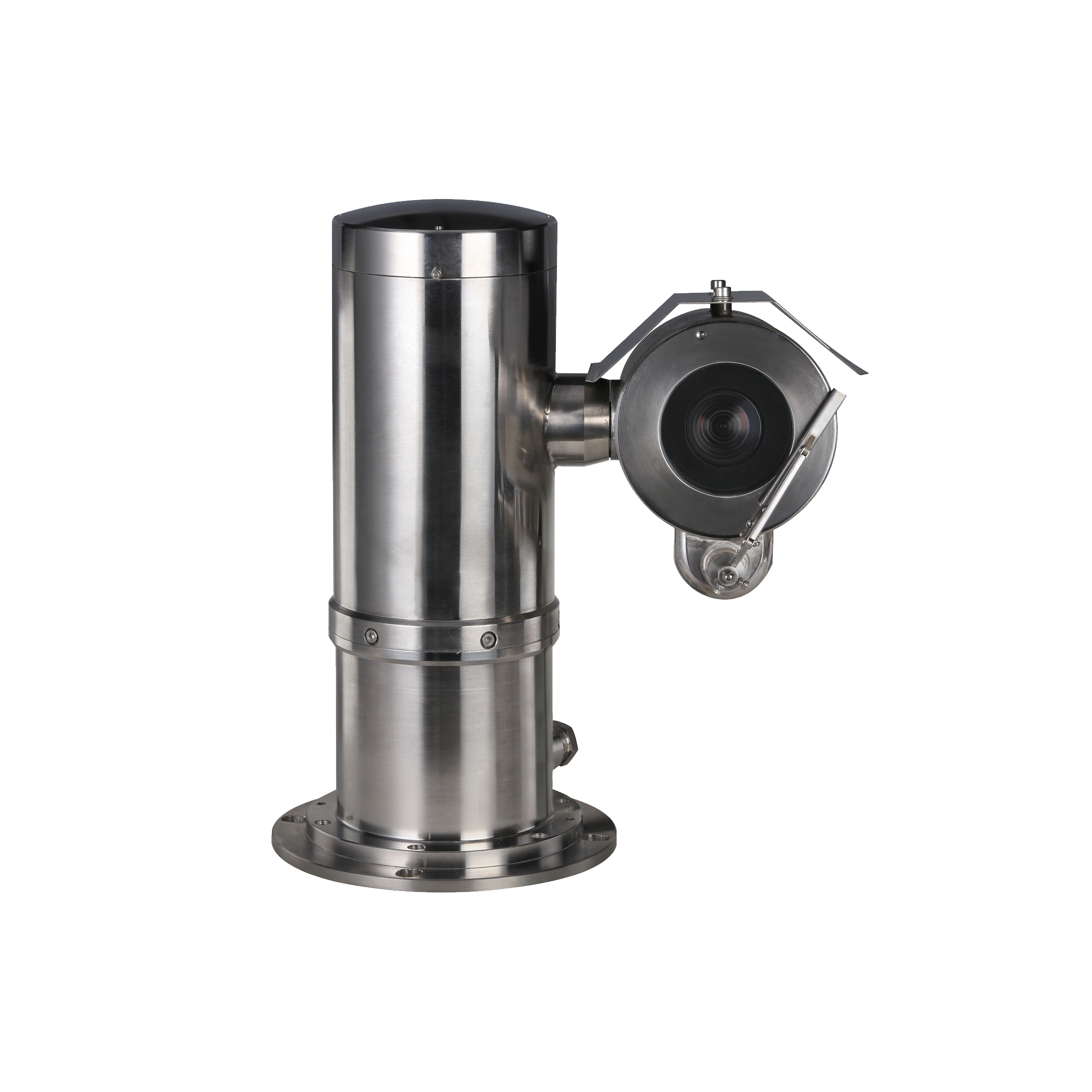

2MP 45 Starlight Non Compensation Light EXPLOSION-PROOF CAMERA | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-EPC245U-PTZ

EAN: 6923172516947

Produktinformationen "2MP 45 Starlight Non Compensation Light EXPLOSION-PROOF CAMERA"

1/2.8' 2Megapixel STARVIS™ CMOS Powerful 45x optcal zoom 316L stainless steel housing Starlight technology H.265/H.264 Triple-stream Encoding Max. 50/60fps@1080P IP68

Technische Daten

Video
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; H.264H; MJPEG(Sub Stream 1)
Resolution	1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 ×720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240)
Video Frame Rate	Main stream: 1080p/1.3M/720p@(1–50/60fps) Sub stream 1: D1/CIF@(1–25/30fps) Sub stream 2: 1080p/1.3M/720P@(1–25/30fps)
PTZ
Pan/Tilt Range	Pan: 0° to 360° endless Tilt: –90° to +90°
Network
Storage	Micro SD card (256 GB)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67
Lens
Focal Length	3.95 mm–177.7 mm
Field of View	H: 61.6°–3.6°; V: 30.7°–2°; D: 60.6°–4°
DORI Distance	W: D: 54.5 m; O: 21.8 m; R: 10.9 m; I: 5.4 m (D: 178.75 ft; O: 71.50 ft; R: 35.75 ft; I: 17.87 ft) T: D: 2451.0 m; O: 980.4 m; R: 490.2 m; I: 245.1 m (D: 8041.35 ft; O: 3216.54 ft; R: 1608.27 ft; I: 804.14 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Camera
Image Sensor	1/2.8" CMOS
Pixel	2 MP
Max. Resolution	1920 (H) × 1080 (V)
Structure
Net Weight	27.6 kg (60.85 lb)
Gross Weight	44.0 kg (97.01 lb)
Certification
Certifications	ATEX: EN 60079-0/EN 60079-1/EN 60079-28/EN 60079-31 IECEx : IEC 60079-0/IEC 60079-1/EN 60079-28/IEC 60079-31 FCC：47 CFR FCC Part15，Subpart B，Class A ANSI C63.4 CE-EMC：EN 55032;EN IEC 61000-3-2;EN 61000-3-3;EN 55024;EN 55035;EN 50130-4 CE-LVD:EN 62368-1
Power
Power Supply	100–240 VAC, 3 A
