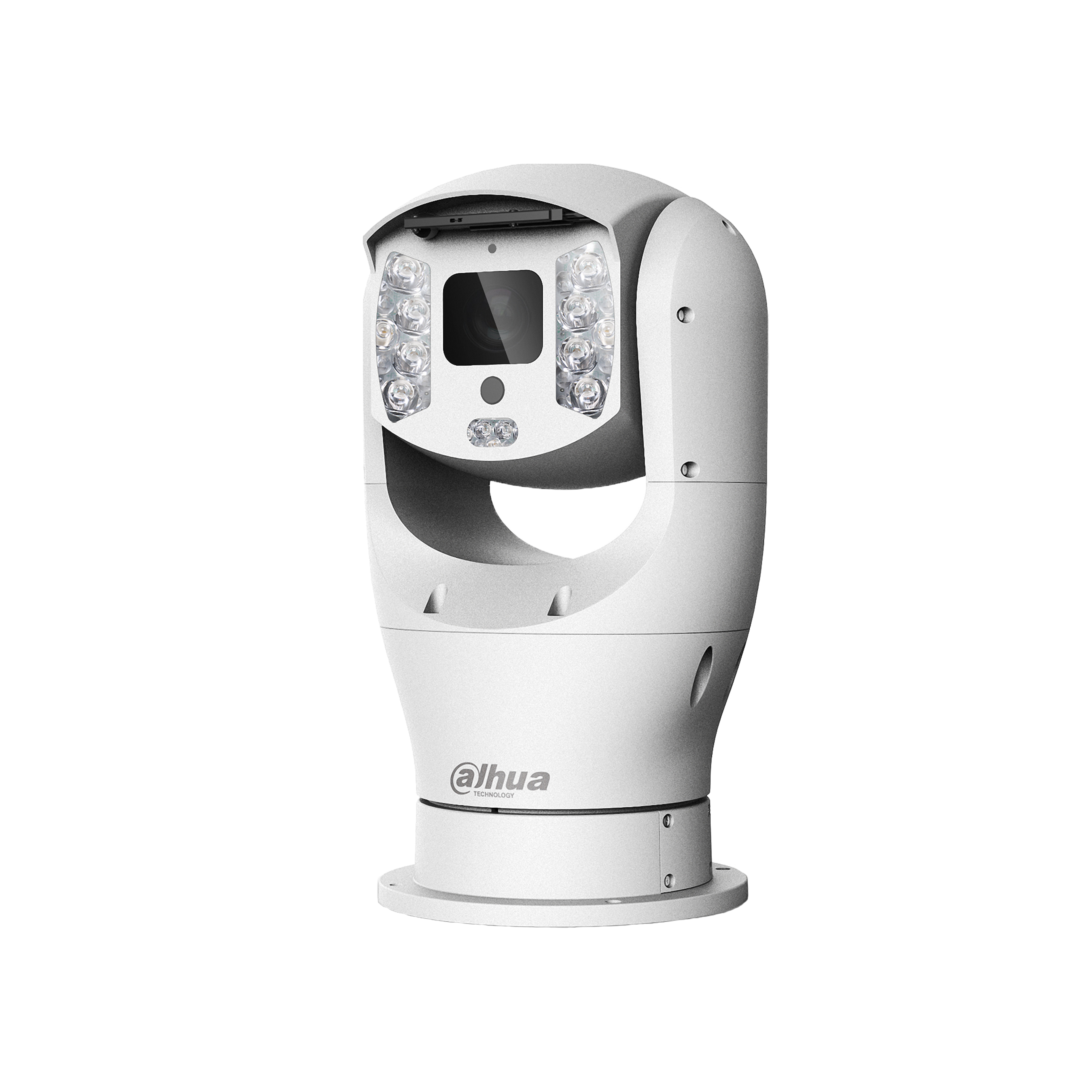

2MP 45 IR ANTI-CORROSION CAMERA | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-PTZ19245U-IRB-N

EAN: 6939554938887

Produktinformationen "2MP 45 IR ANTI-CORROSION CAMERA"

45x optical zoom, Starlight, H.265, IVS, Auto-tracking, IR Distance up to 350m, ±25% wide voltage input, IP68, Hi-PoE, Anti-corrosion(NEMA 4X report), Tilt: 0° ~ 360° endless, Smart Wiper

Technische Daten

Smart Event
IVS	Tripwire, IntrusionAbandoned/MissingFace Detection
Intelligence
Auto Tracking	Yes
Video
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264
Streaming Capability	3 streams
Resolution	1080P(1920×1080)/1.3M(1280×960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240)
Video Frame Rate	Main stream: 1080P/1.3M/720P@(1-50/60fps) Sub stream 1: D1/CIF@(1-25/30fps) Sub stream 2: 1080P/1.3M/720P/D1/CIF@(1-25/30fps)
WDR	120dB
PTZ
Pan/Tilt Range	Pan: 0° to 360° endless; Tilt: 0°to 360° endless
Preset Speed	Pan: 200° /sTilt: 120° /s
Network
Interoperability	ONVIF (Profile S & Profile G); API
Storage	Micro SD, Max. 128GB
Port
Audio Input	1 channel
Audio Output	1 channel
Alarm Input	7
Alarm Output	2 channels
Environment
Operating Temperature	–50 °C to +70 °C (–58 °F to +158 °F), 24 VAC '–40 °C to +70 °C (–40 °F to +158 °F), Hi-PoE
Protection	IP68
Lens
Focal Length	3.95mm-177.7mm
Field of View	H: 61.6°–3.6°; V: 30.7°–2°; D: 60.6°–4°
DORI Distance	W: D: 54.5 m; O: 21.8 m; R: 10.9 m; I: 5.4 m (D: 178.75 ft; O: 71.50 ft; R: 35.75 ft; I: 17.87 ft) T: D: 2451.0 m; O: 980.4 m; R: 490.2 m; I: 245.1 m (D: 8041.35 ft; O: 3216.54 ft; R: 1608.27 ft; I: 804.14 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Camera
Image Sensor	1/2.8" CMOS
Pixel	2 MP
Max. Resolution	1920 (H) × 1080 (V) 2688 (H) × 1520 (V)
Min. Illumination	0.005Lux@F1.6(Color)0Lux /F1.6 (IR on)
Illumination Distance	350 m (1148 ft)
Illuminator Number	8 (IR light)
Power
Power Supply	24 VAC, 8.35 A ± 25%; Hi-PoE
