2MP 30 Starlight Non Compensation Light Explosion Proof Camera | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-EPC230U

EAN: 6939554938771

Produktinformationen "2MP 30 Starlight Non Compensation Light Explosion Proof Camera"

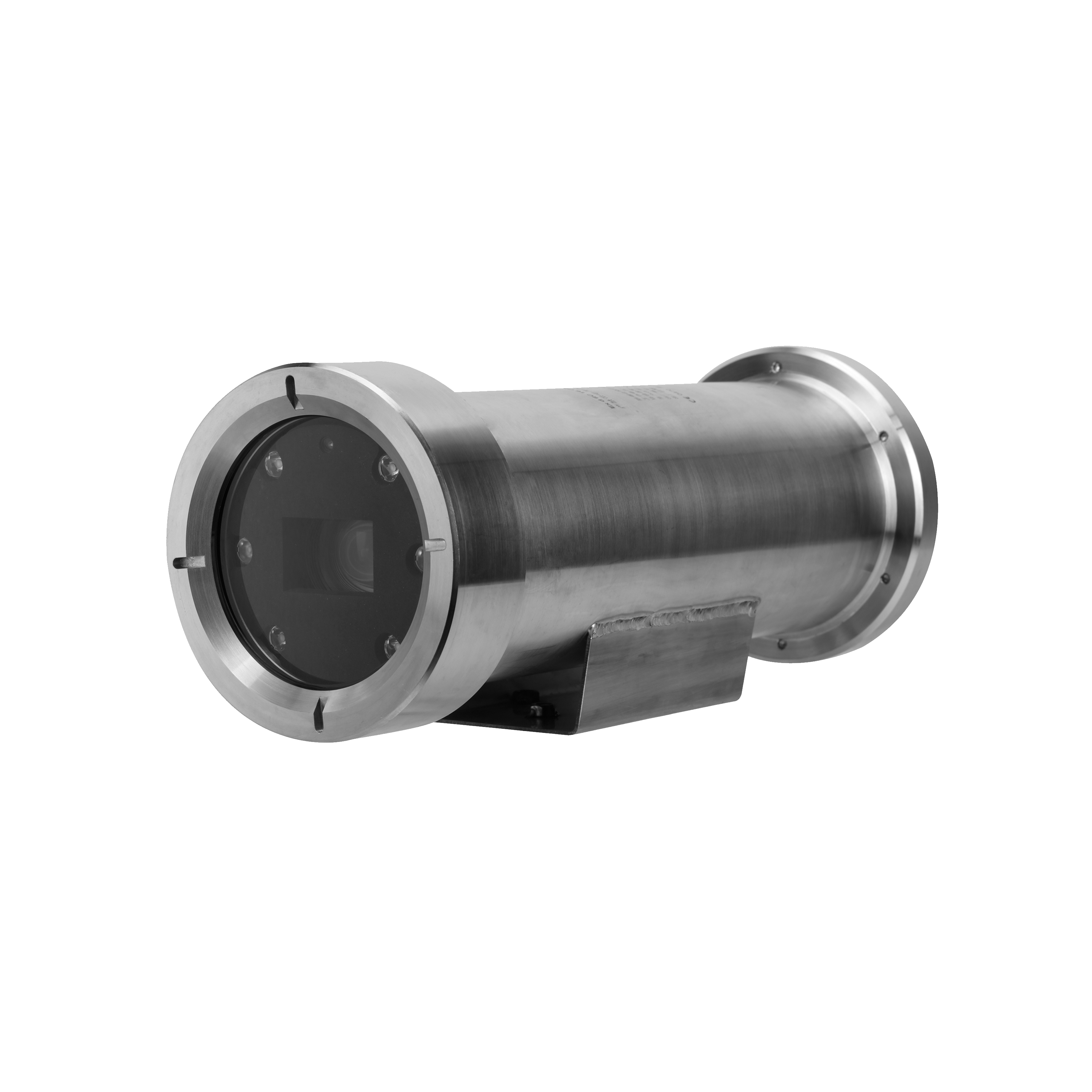

The Dahua Explosion-protected Camera series features a powerful optical zoom lens and a rugged design that meets the ATEX and the IECEx standards. This camera series uses a 1/2.8-in. STARVIS™ CMOS imager with a 30x optical zoom lens, and provides an all-in-one solution for capturing long-distance video surveillance in critical environments. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The explosion-protected stainless steel camera is designed to prevent ignition of surrounding gasses or combustible dust, and is the ideal surveillance solution for use in the oil production, pipeline, refinery, chemical, and grain storage industries.

Technische Daten

Smart Event
IVS	Tripwire, IntrusionAbandoned/MissingFace Detection
Video
Video Compression	H.265; H.264
Streaming Capability	3 streams
Resolution	1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 ×720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240)
Video Frame Rate	Main stream: 1080p/1.3M/720p@(1–50/60 fps) Sub stream 1: D1/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
WDR	120dB
Network
Interoperability	ONVIF (Profile S & Profile G); API
Storage	Micro SD, Max. 128GB
Port
Audio Input	1 channel
Audio Output	1 channel
Alarm Input	2
Alarm Output	2 channels
Environment
Operating Temperature	-40°C ~ +60°C(-40°F ~ +140°F)
Protection	IP68
Lens
Focal Length	4.5 mm–135 mm
Field of View	H: 67.8°–2.4°; V: 40.5°–1.4°
DORI Distance	W: D: 62.1 m; O: 24.8 m; R: 12.4 m; I: 6.2 m (D: 203.64 ft; O: 81.45 ft; R: 40.73 ft; I: 20.36 ft) T: D: 1862.1 m; O: 744.8 m; R: 372.4 m; I: 186.2 m (D: 6109.08 ft; O: 2443.63 ft; R: 1221.82 ft; I: 610.91 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Camera
Image Sensor	1/2.8" CMOS
Pixel	2 MP
Max. Resolution	1920 (H) × 1080 (V)
Min. Illumination	0.005Lux/F1.6(Color)0Lux/ 1.6F (IR on)
Illumination Distance	100 m (328 ft)
Illuminator Number	6 (IR light)
Power
Power Supply	100–220 VAC, Max. 25W
