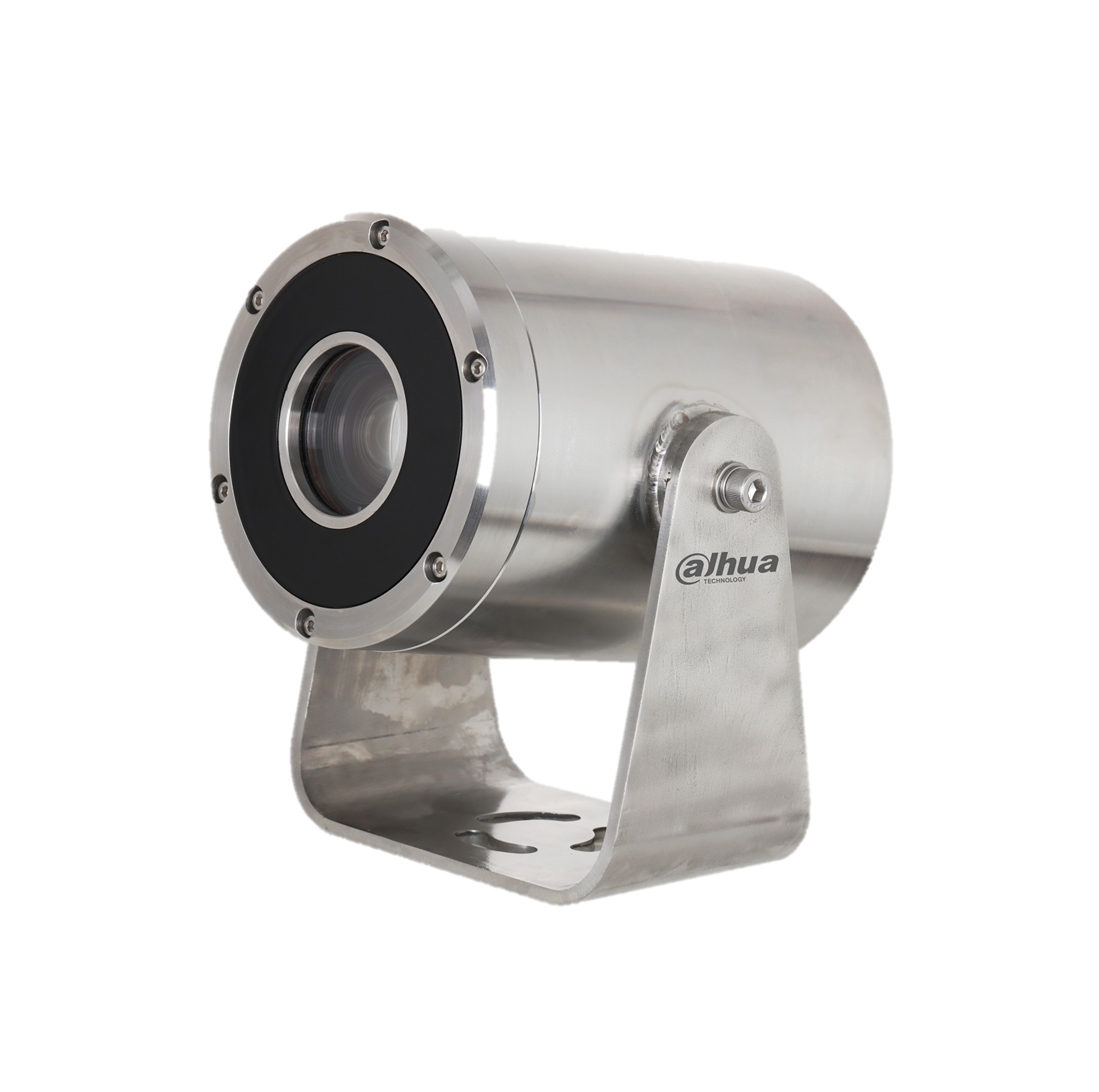

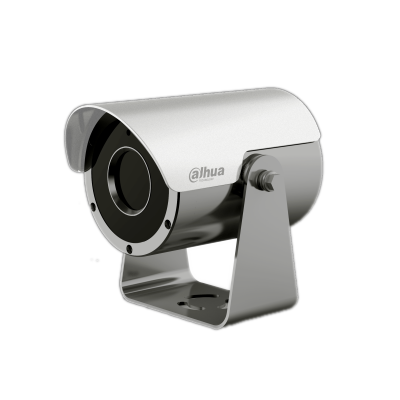

2MP 30 IR ANTI-CORROSION CAMERA | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-SDZW2030U-SL

EAN: 6923172516848

Produktinformationen "2MP 30 IR ANTI-CORROSION CAMERA"

> 1/2.8' 2Megapixel STARVIS™ CMOS > Powerful 30x optical zoom > Starlight technology > H.265 Encoding > Max. 50/60fps@1080P > IVS > IP68 > Material: 316L Stainless steel

Technische Daten

Smart Event
IVS	Tripwire, IntrusionAbandoned/MissingFace Detection
Video
Video Compression	H.265; H.264
Streaming Capability	3 streams
Resolution	1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 ×720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240)
Video Frame Rate	Main stream: 1080p/1.3M/720p@(1–50/60 fps) Sub stream 1: D1/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
WDR	120dB
Network
Interoperability	ONVIF (Profile S & Profile G); API
Storage	Micro SD, Max. 128GB
Port
Audio Input	1 channel
Audio Output	1 channel
Alarm Input	2
Alarm Output	2 channels
Environment
Operating Temperature	-40°C ~ +70°C(-40°F ~ +158°F)
Protection	IP68
Lens
Focal Length	4.5 mm–135 mm
Field of View	H: 67.8°–2.4°; V: 40.5°–1.4°
DORI Distance	W: D: 62.1 m; O: 24.8 m; R: 12.4 m; I: 6.2 m (D: 203.64 ft; O: 81.45 ft; R: 40.73 ft; I: 20.36 ft) T: D: 1862.1 m; O: 744.8 m; R: 372.4 m; I: 186.2 m (D: 6109.08 ft; O: 2443.63 ft; R: 1221.82 ft; I: 610.91 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Camera
Image Sensor	1/2.8" CMOS
Pixel	2 MP
Max. Resolution	1920 (H) × 1080 (V)
Min. Illumination	0.005Lux/F1.6(Color)0Lux/ 1.6F (IR on)
Illumination Distance	100 m (328 ft)
Illuminator Number	5(IR light)
Certification
Certifications	NEMA 4X：4788140231
Power
Power Supply	24 VAC, 1.5 A, 12 VDC, 3 A, PoE (802.3at), Max 25 W
