200m RG59+2C Coaxial Cable with Power Cable (Black) | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-PFM940I-59N/2

EAN: 6939554931147

Produktinformationen "200m RG59+2C Coaxial Cable with Power Cable (Black)"

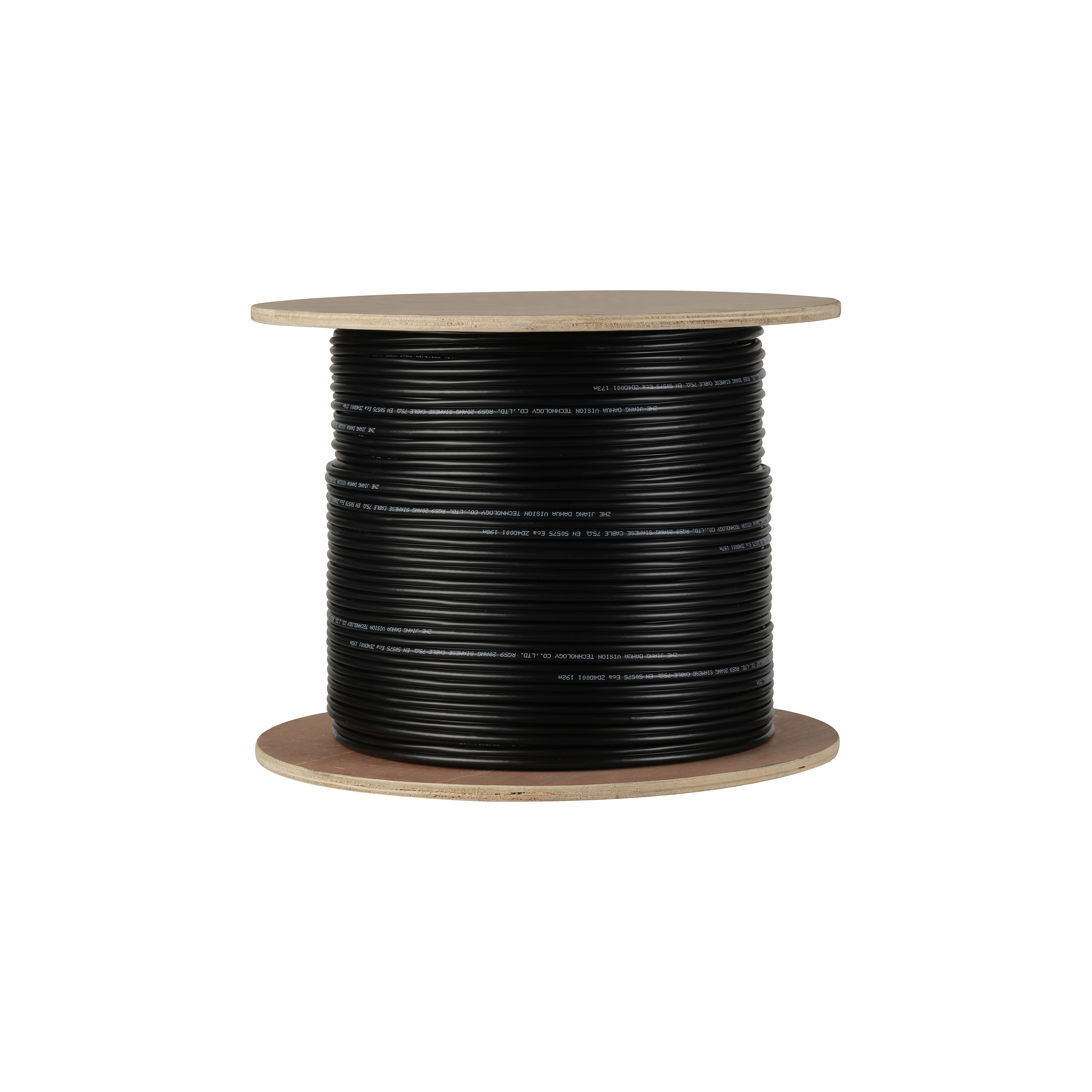

200 m (656.17 ft) RG59 with power cable, transmits both data and power, wooden spool. Professional quality cable for use with most CCTV camera systems. Supplied on wooden reels for easy storage and installation. Environmentally-friendly outer sheath.

Technische Daten

Insulation
Material	FPE
Diameter	3.7 mm ± 0.10 mm (0.15" ± 0.0039")
Color	2 cores (red, black)
Inner Shield
Material	Single-sided aluminum foil composite
Outer Shield
Material	Aluminum-magnesium alloy
Specification	0.12 mm (0.0047") × 64 (16 × 4)
Packaging
Cable Length	200 m (656.17 ft)
Packaging Dimension	Ф300 mm × 300 mm (Ф11.81" × 11.81")
Net Weight	13.0 kg ± 0.5 kg (28.66 lb ± 1.10 lb)
Gross Weight	13.5 kg ± 0.5 kg (29.76 lb ± 1.10 lb)
Conductor
Diameter	20AWG (0.8 mm) (0.0315")
Material	OFC
Electrical
Characteristic Impedance	Coaxial cable: 75 Ω ± 3 Ω
Sheath
Material	PVC
Min. Average Thickness	≥ 0.8 mm (0.0315")
Diameter	4.85 mm ± 0.20 mm (0.19" ± 0.0079")
Color	Black
