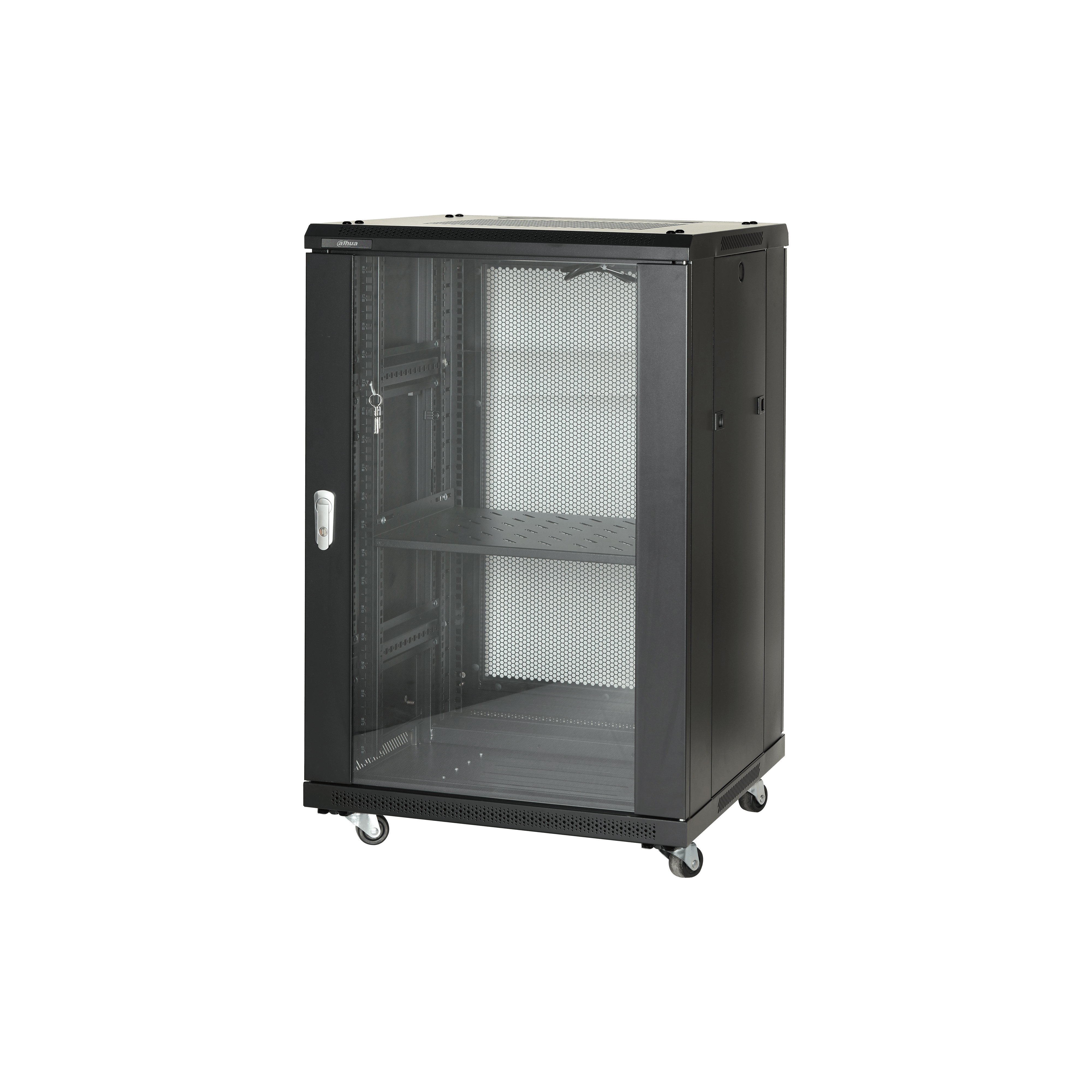

19" 18U rack cabinet | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-PFC200D-18U6D

EAN: 6939554998997

Produktinformationen "19" 18U rack cabinet"

Aesthetic design. Standard 19" rack. Supports floor standing. Removable side panel, convenient for construction installation and feature maintenance.

Construction
Product Dimensions	600.0 mm × 600.0 mm × 985.0 mm (23.62" × 23.62" × 38.78") (W×D×H)
Packaging Dimensions	618.0 mm × 618.0 mm × 918.0 mm (24.33" × 24.33" × 36.14") (W×D×H)
Material	1.2 mm (0.05") cold rolled steel for the square hole mounting rail; 0.8 mm (0.03") cold rolled steel for other parts
Color	Black (RAL9004)
Installation	Floor standing
Panel Type	5.0 mm (0.20") right-hinged thick tempered glass for the front door; right-hinged mesh for the rear door
Lock Type	403 lock (universal key)
Static Load	≤ 500.0 kg (1102.31 lb)
Net Weight	34.0 kg (74.96 lb)
Gross Weight	37.85 kg (83.44 lb)
Environmental
Operating Temperature	–10 ℃ to +50 ℃ (+14 ℉ to +122 ℉)
Humidity	20%–70% (RH), non-condensing
Operating Altitude	＜ 2,000.0 m (6,561.68 ft)
Protection	IP20
Accessory
Factory Accessories	2 × Key 20 × M6×12 mm Cross Screw 1 × Allen Wrench 4 × M12×95 mm Support Foot
Optional
Castor	4 × 2" Castor
