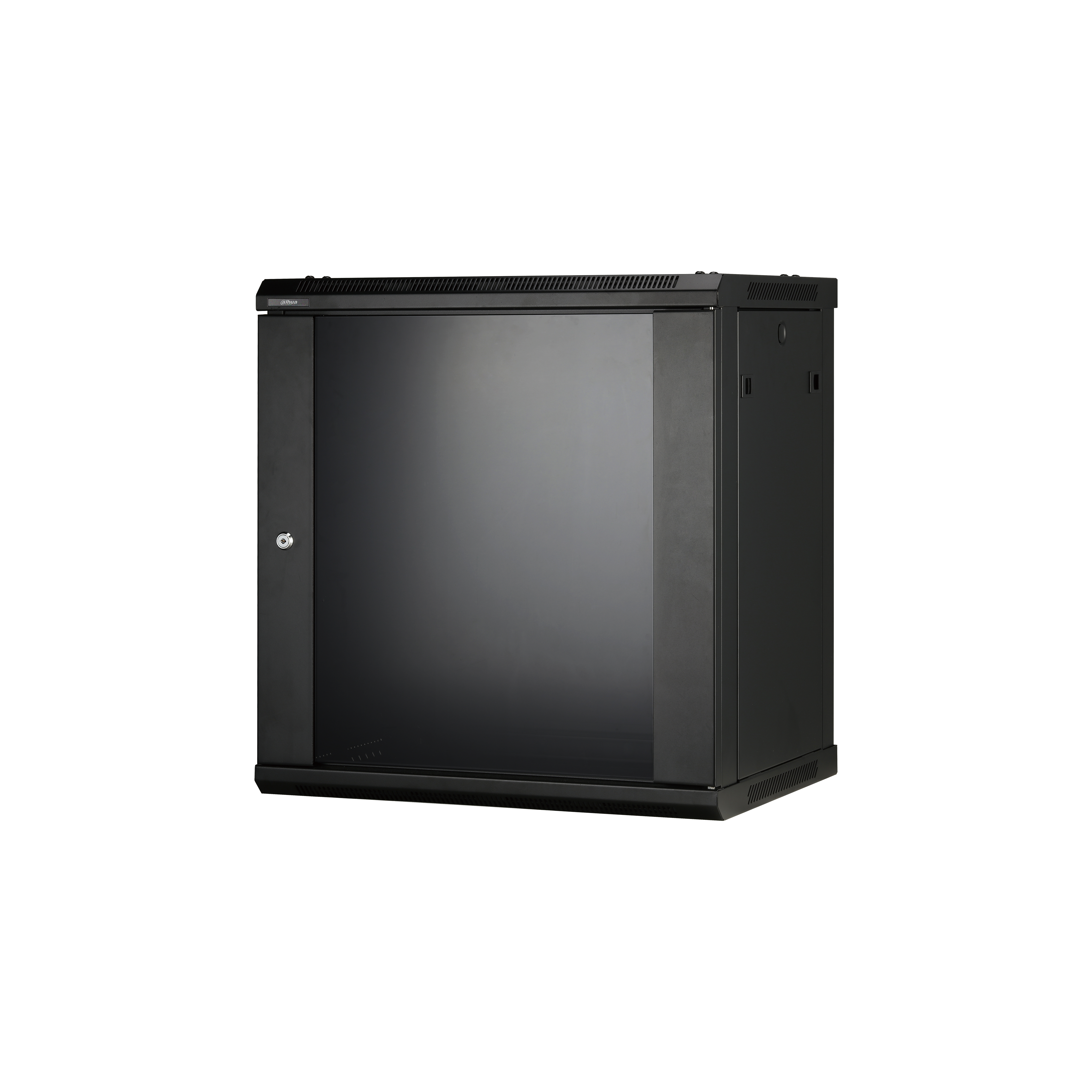

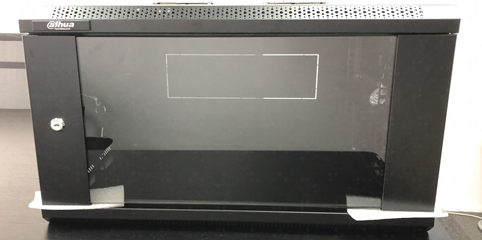

19" 12U rack cabinet | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-PFC200D-12U4D

EAN: 6939554998980

Produktinformationen "19" 12U rack cabinet"

Aesthetic design. Standard 19" rack. Supports wall mount. Removable side panel, convenient for construction installation and feature maintenance.

Construction
Product Dimensions	600.0 mm × 450.0 mm × 637.0 mm (23.62" × 17.72" × 25.08") (W × D × H)
Packaging Dimensions	680.0 mm × 530.0 mm × 715.0 mm (26.77" × 20.87" × 28.15") (W × D × H)
Material	1.2 mm (0.05") cold rolled steel for the square hole mounting rail; 0.8 mm (0.03") cold rolled steel for other parts
Color	Black (RAL9004)
Installation	Wall mount
Panel Type	5.0 mm (0.20") right-hinged thick tempered glass door by default
Lock Type	18.0 mm (0.71") × 25.0 mm (0.99") small round lock (universal key)
Static Load	≤ 60.0 kg (132.28 lb)
Net Weight	18.75 kg (41.34 lb)
Gross Weight	20.75 kg (45.75 lb)
Environmental
Operating Temperature	–10 ℃ to +50 ℃ (+14 ℉ to +122 ℉)
Humidity	20%–70% (RH), non-condensing
Operating Altitude	＜ 2,000.0 m (6,561.68 ft)
Protection	IP20
Accessory
Factory Accessories	2 × Key 10 × M6 Cross Screw 1 × Allen Wrench
