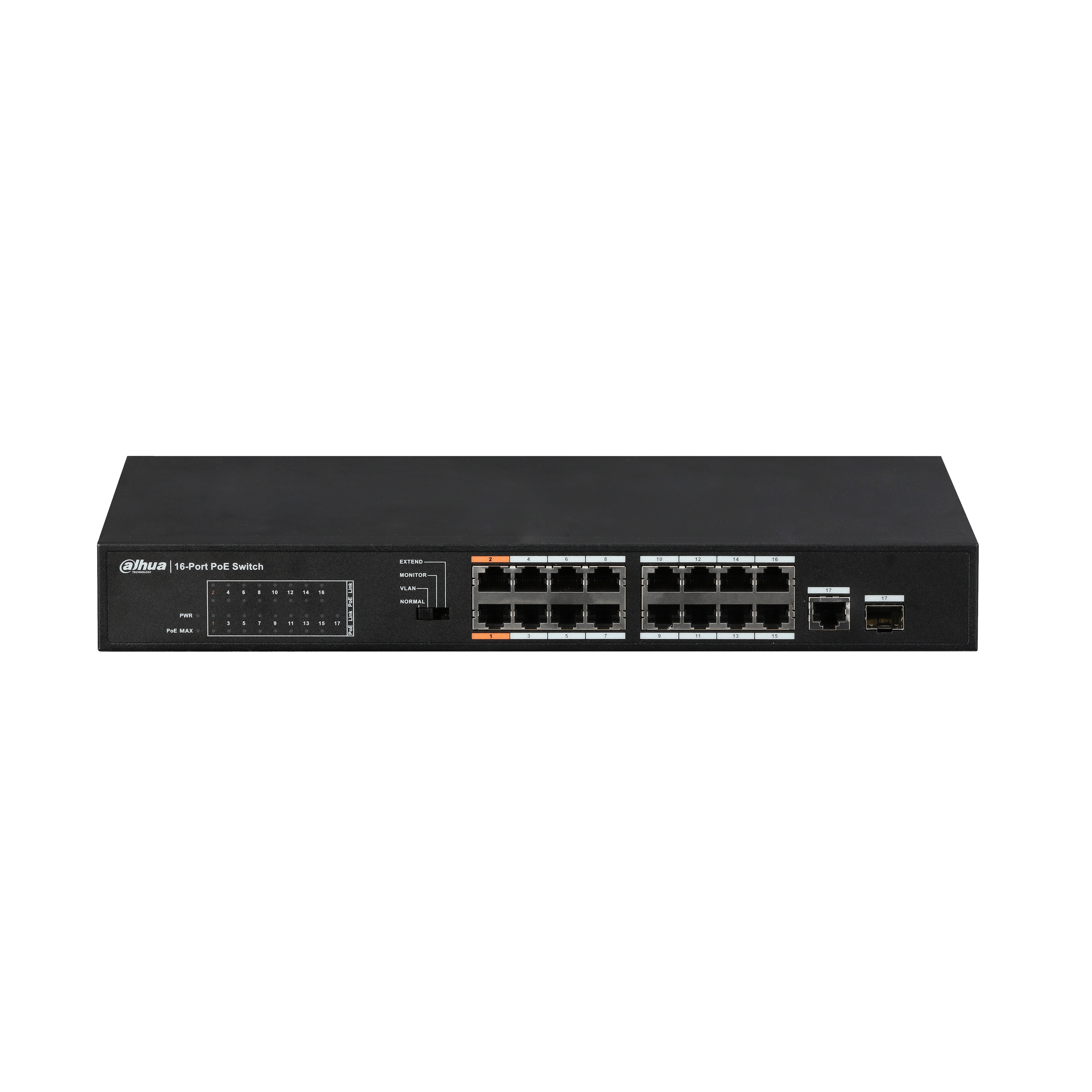

17-Port Unmanaged Switch with 16-Port PoE | EPS Dahua

Details und Preise sehen Sie nach Login als Fachhandelspartner.

Lieferzeit bitte anfragen.

Art.-Nr.: DH-PFS3117-16ET-135

EAN: 6939554955679

Produktinformationen "17-Port Unmanaged Switch with 16-Port PoE"

> Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x standards > Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards > Supports normal working mode, port isolation (VLAN) mode, monitoring mode, network extend mode.

Technische Daten

Function
Flow Control	Support
PoE Function
PoE Protocol	IEEE 802.3af; IEEE 802.3at; Hi-PoE
PoE Power	135w
Far Distance Mode	Yes (250 meters)
General
Product Dimensions	340 mm × 200 mm × 43 mm (13.4" × 7.9" × 1.7") (L × W × H)
Hardware
Ethernet Port	16
Optical Port	1
Description of Function Slots	16FE PoE + 1GE RJ-45/SFP Combo
Operating Temperature	0 °C to +45 °C (+32 °F to +113 °F)
Lightning Protection	Common Mode 2KVDifferential Mode 0.5KV
Performance
Layer	Unmanaged
Switching Capacity	5.2Gbps
Packet Forwarding Rate	3.87Mpps
MAC Table Size	4k
VLAN Number	Support
